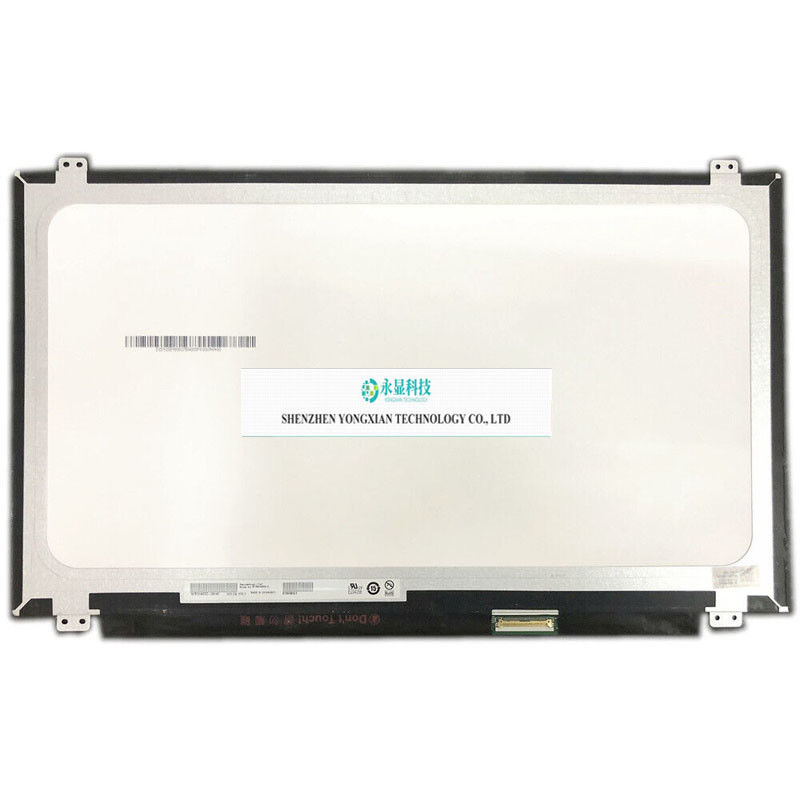

B156HAB02.0 LCD Touch Screen Digitizer Screen Panel Matrix 1920x1080 IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAB02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B156HAB02.0 |
|---|---|---|---|
| Size: | 15.6 | Panel Type: | A-Si TFT-LCD,LCD，Screen Assembly |
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 344.16(W)×193.59(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | On-Cell Touch, I²C/USB |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , Terminal, | ||
| Highlight: | 1920x1080 lcd touch panel,1920x1080 lcd touch screen,ips lcd touch panel |
||
Product Description
B156HAB02.0 is a 15.6-inch a-Si TFT-LCD screen assembly product launched by AUO, which is equipped with WLED backlight and includes LED driver backlight driver, On-Cell Touch. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical features are summarized as: with touch screen, white LED backlight, including LED driver, and inverted terminals. Based on its feature screen library, this model is recommended for use in laptops and other products. And the parameters were finally updated on August 30, 2022. B156HAB02.0 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.16 (width) × 193.59 (height) mm. In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B156HAB02.0 adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
