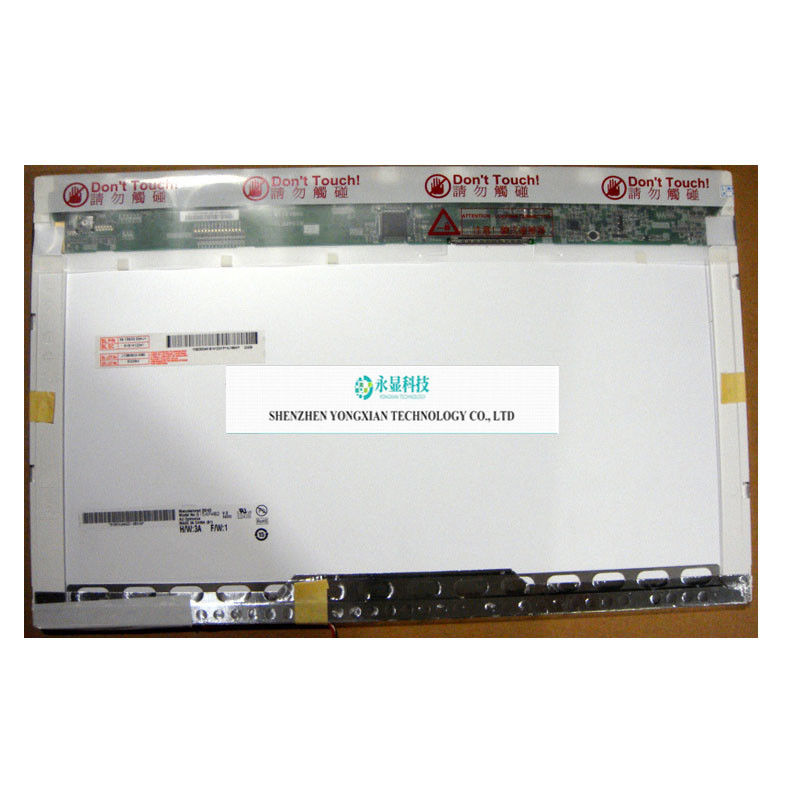

B154PW02 V2 fit B154PW01 V.0 V.1 N154C1-L02 CLAA154WP04A CLAA154WP01A 1440X900
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B154PW02 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B154PW02 V2 |
|---|---|---|---|
| Size: | 15.4 | Panel Type: | A-Si TFT-LCD,LCD Module |
| Resolution: | 1440(RGB)×900, WXGA+, 110PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 331.56(W)×207.225(H) Mm | Appearance Dimensions: | 344(W)×222(H)×6.1(D) Mm |
| Support Colors: | 262K , 46% NTSC | Surface Treatment Mirror: | Mirror (Haze 0%), Hard Coating (3H), Reflectivity 4.3% (Typ.) |
| Brightness: | 250 (Typ.) | Contrast Ratio: | 400 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thick Screen (PCBA Bent, Thickness ≥ 5.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | ELVDS (2 Ch, 6-bit) , , Terminal, 30 Pins | ||
| Highlight: | lcd laptop screen,tft laptop screen,tft laptop lcd screen |
||
Product Description
B154PW02 V2 (alias: B154PW02 V.2) (Product Code: AUO2277 is a 15.4-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with CCFL backlight, no backlight driver, and no touch. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as: surface mirror. Based on its feature screen library, this model is recommended for use in laptops and other products. And the parameters were finally updated on April 22, 2020. According to the product specification document Ver0.3 released by AUO on December 14, 2006, the B154PW02 V2 has a display resolution of 1440 (RGB) × 900 (WXGA+), an aspect ratio of 16:10 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 331.56 (width) × 207.225 (height) mm, the external dimensions are 344 (width) × 222 (height) × 6.1 (thickness) mm, the visible dimensions are 335.36 (width) × 211.06 (height) mm, the surface treatment is mirror (Haze 0%), Hard coating (3H), reflectivity 4.3% (Typ.), and the net weight of the product is 535g (Max.). The appearance style is thick screen (PCBA bent, thickness ≥ 5.2mm). In terms of backlight, this product uses 1 piece of CCFL emitting side entry light source (bottom), without backlight driver. B154PW02 V2 adopts LVDS (2 ch, 6-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
