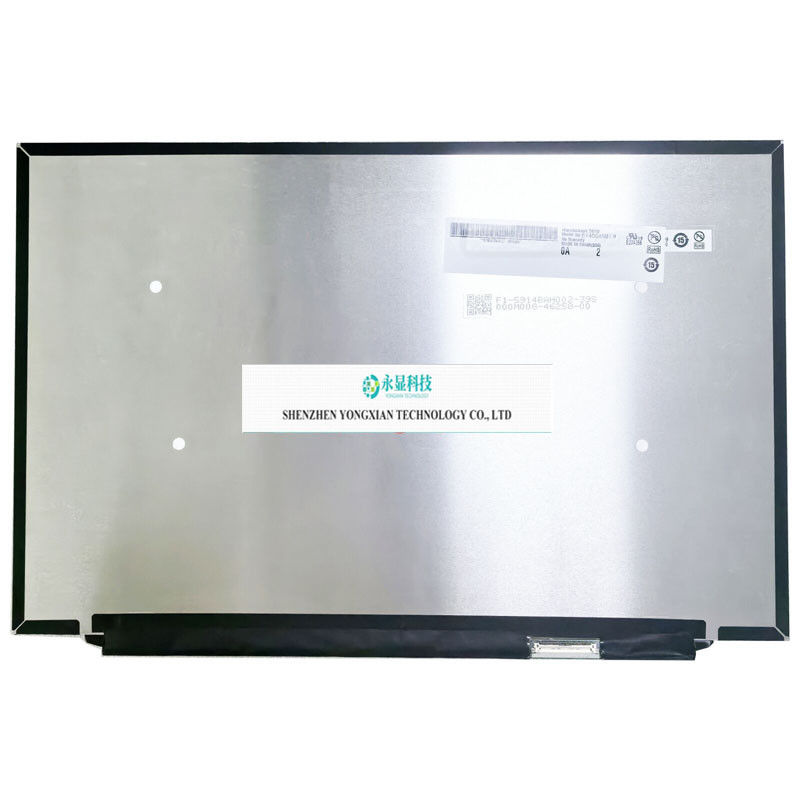

B145QAN01.H IPS 14.5'' 2560x1600 Original Display Replacement Panel Matrix
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B145QAN01.H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B145QAN01.H |
|---|---|---|---|
| Size: | 14.5 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 2560(RGB)×1600, WQXGA, 208PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 312.19(W)×195.12(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | - | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | - | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | - | ||
| Highlight: | ips laptop screen,ips laptop lcd screen,lcd laptop screen |
||
Product Description
The B145QAN01. H launched by AUO is a 14.5-inch LCD module product using LTPS TFT-LCD technology, equipped with WLED backlight and touch free. Its typical features are summarized as: white LED backlight. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. On June 30, 2023, parameters were first established for this model. The display resolution of B145QAN01. H is 2560 (RGB) × 1600 (WQXGA), with an aspect ratio of 16:10 (width: height). The pixels are arranged vertically in RGB stripes, and the pixel density calculated by the screen library is 208 PPI. Its display area size is 312.19 × 195.12 (width × height) mm. In terms of backlight, this product adopts a WLED side entry light source.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
