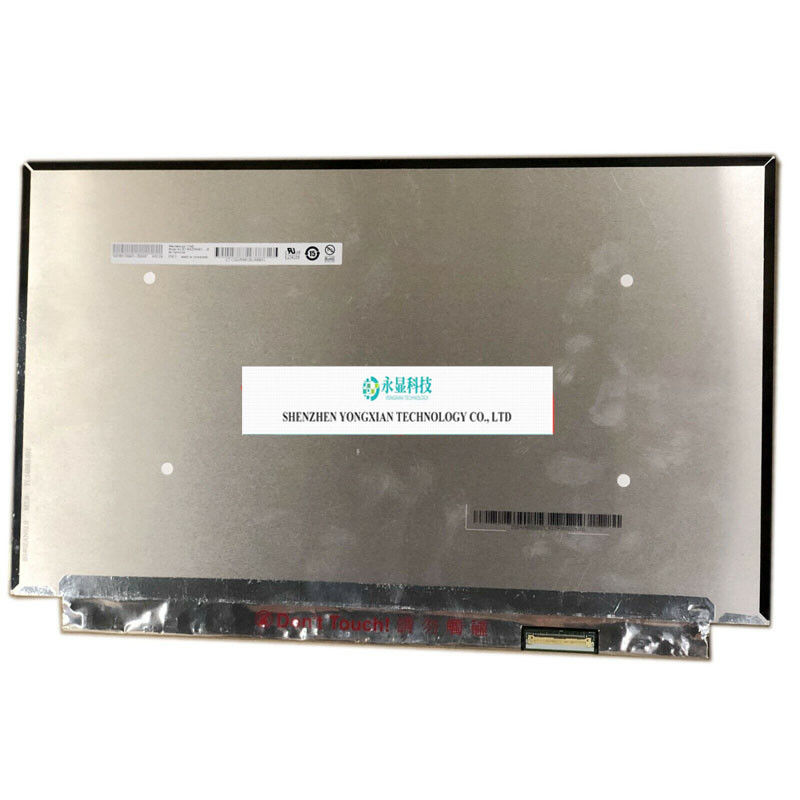

B140ZAN01.0 fit NV140QUM-N61 14LED LCD Screen For 40 pins EDP UHD 3840x2160
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140ZAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140ZAN01.0 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | LTPS TFT-LCD,LCD Module |
| Resolution: | 3840(RGB)×2160, UHD, 315PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.312(W)×173.988(H) Mm | Appearance Dimensions: | 315.01(W)×199.04(H)×2.4(D) Mm |
| Support Colors: | 16.7M , 72% NTSC | Surface Treatment Mirror: | Misty Surface,Hard Coating (3H) |
| Brightness: | 400 (Typ.) | Contrast Ratio: | 1200 : 1 (Typ.) [Transmission] |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , EDP1.4 , Terminal, 40 Pins | ||
| Highlight: | lcd laptop screen,edp laptop screen,edp laptop lcd screen |
||
Product Description
B140ZAN01.0 (Product Code: AUO103B is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver0.4 released by AU on March 8, 2018, B140ZAN01.0 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. The pixel density calculated by the screen library is 315 PPI. Its display area size is 309.312 × 173.988 (width × height) mm, and its appearance size is 315.01 × 199.04 (width × height) × 2.4 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 235g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140ZAN01.0 adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on November 15, 2024. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its white LED backlight, including LED driver, inverted terminals, and matte surface, EDP1.4 and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
