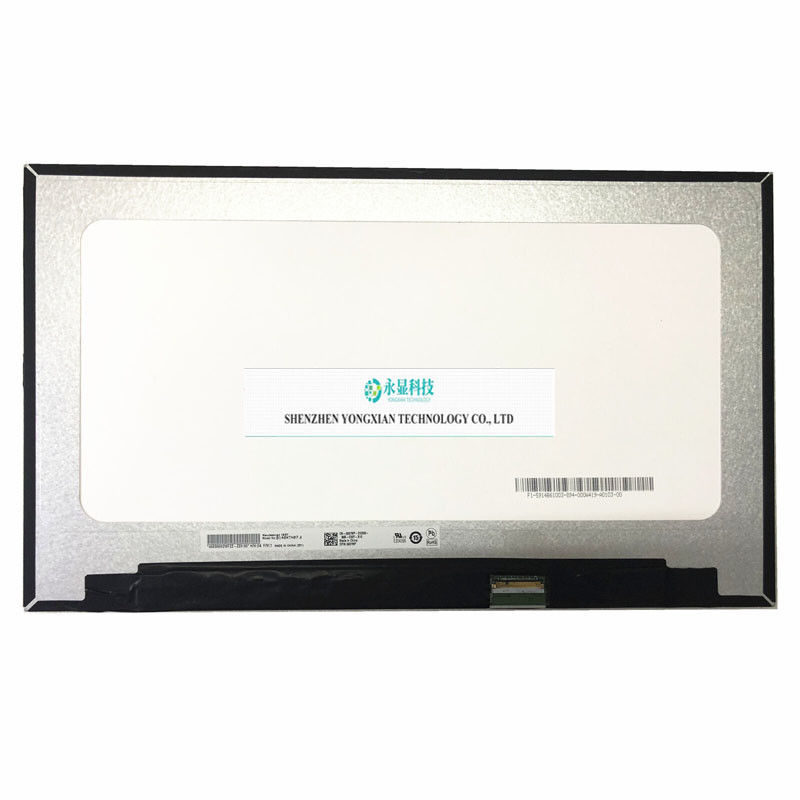

B140XTN07.4 14 inch LCD Screen Display with No Screw Holes 1366X768
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140XTN07.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140XTN07.4 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 1366(RGB)×768, WXGA, 112PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.399(W)×173.952(H) Mm | Appearance Dimensions: | 315.87(W)×186.08(H)×5.25(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Misty Surface,Hard Coating， Reflectivity 4.3% (Typ.) |
| Brightness: | 220 (Typ.) | Contrast Ratio: | 400:1 (Typ.) (Transmission) |
| Viewing Angle: | 45/45/15/40 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (2 Lanes) , EDP1.2 , Terminal, 30 Pins | ||
| Highlight: | lcd laptop screen,edp laptop screen,edp laptop lcd screen |
||
Product Description
B140XTN07.4 (Product Code: AUO743C is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver1.1 released by AU on February 15, 2019, B140XTN07.4 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 309.399 × 173.952 (width × height) mm, and its appearance size is 315.87 × 186.08 (width × height) × 5.25 (thickness) mm. The surface treatment is matte, Hard coating, Reflectivity of 4.3% (Typ.), net weight of 300g (Max.), appearance style of thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140XTN07.4 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on August 30, 2022. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, including LED driver, inverted terminals, and matte surface, EDP1.2, sDRRS, DCR and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
