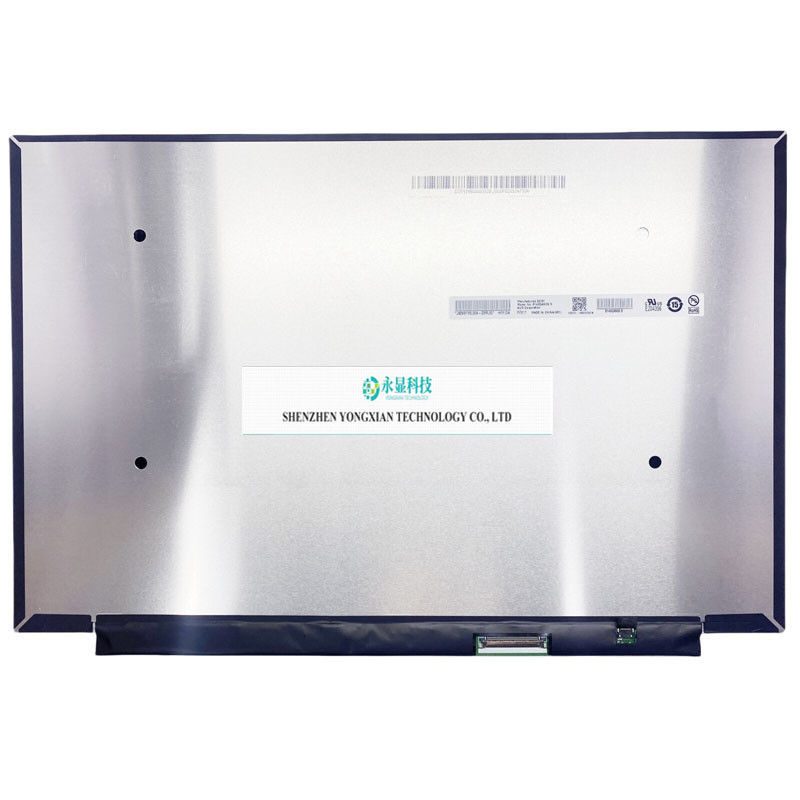

B140QAN06.S 14.0 inch Laptop LCD screen Replacement Display Panel Matrix
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140QAN06.S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140QAN06.S |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 2560(RGB)×1600, WQXGA, 215PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 301.594(W)×188.496(H) Mm | Appearance Dimensions: | 306.59(W)×206.226(H)×3.5(D) Mm |
| Support Colors: | 16.7M , 100% DCI-P3 | Surface Treatment Mirror: | Matte |
| Brightness: | 600 Cd/m² (Min.) | Contrast Ratio: | 1200:1 (Typ.) (Transmission) |
| Viewing Angle: | 89/89/89/89 (Max.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 165Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 40 Pins EDP (4 Lanes) , EDP1.4 | ||
| Highlight: | 14.0 laptop screen,14.0 laptop lcd screen,lcd laptop screen |
||
Product Description
The B140QAN06. S (product code: AUO7CA6 is a 14.0-inch LCD module product using LTPS TFT-LCD technology. It is equipped with Mini LED backlight, including LED driver backlight driver, and is touch free. To summarize its typical features: DCI-P3,Adobe RGB,sRGB,HDR600,165Hz, High brightness, Mini LED backlight, including LED driver, inverted terminals, matte surface, HDR600. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops and games. And the parameters were finally updated on August 23, 2024. According to the product specification document HW1A_Ver0.3 released by AU on July 11, 2023, B140QAN06. S has a display resolution of 2560 (RGB) × 1600 (WQXGA), an aspect ratio of 16:10 (width: height), and RGB vertical stripe arrangement of pixels, resulting in a calculated pixel density of 215 PPI. Its display area size is 301.594 × 188.496 (width × height) mm, and its appearance size is 306.59 (width) × 206.226 (height) × 3.5 (thickness) mm. The surface treatment is matte, and the net weight of the product is 260g (Typ.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product uses a Mini LED direct light source with a lifespan of 15K hours and includes an LED driver. B140QAN06. S adopts eDP (4 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 165Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
