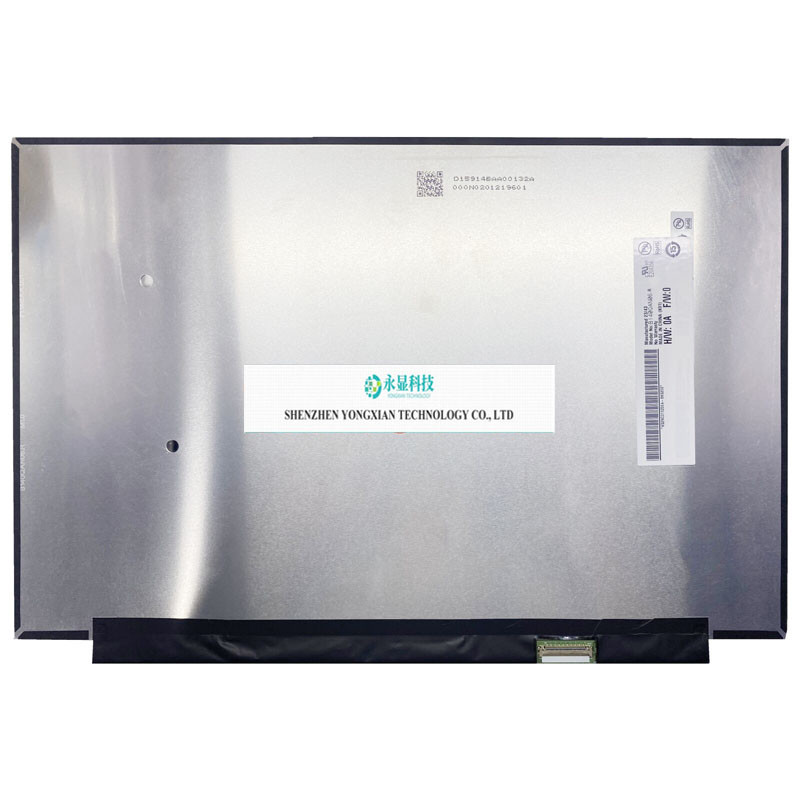

B140QAN06.R 14.0 inch IPS Laptop LCD screen Display Panel Matrix NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140QAN06.R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140QAN06.R |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 2560(RGB)×1600, WQXGA, 215PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 301.594(W)×188.496(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M , 100% DCI-P3 | Surface Treatment Mirror: | - |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 165Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP , EDP1.4 | ||
| Highlight: | ips laptop lcd,14.0 ips laptop,14.0 frameless ips monitor |
||
Product Description
The B140QAN06. R launched by AUO is a 14.0-inch LCD module product using LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. To summarize its typical features: 165Hz, white LED backlight, including LED driver, inverted terminals. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops and games. And the parameters were finally updated on August 21, 2024. B140QAN06. R has a display resolution of 2560 (RGB) × 1600 (WQXGA), an aspect ratio of 16:10 (width: height), and RGB vertical stripe arrangement of pixels. The calculated pixel density is 215 PPI. Its display area size is 301.594 × 188.496 (width × height) mm, with a net weight of 230g (Typ.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with LED driver. B140QAN06. R adopts eDP signal interface and terminal connection. Its typical vertical refresh rate Fv is 165Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
