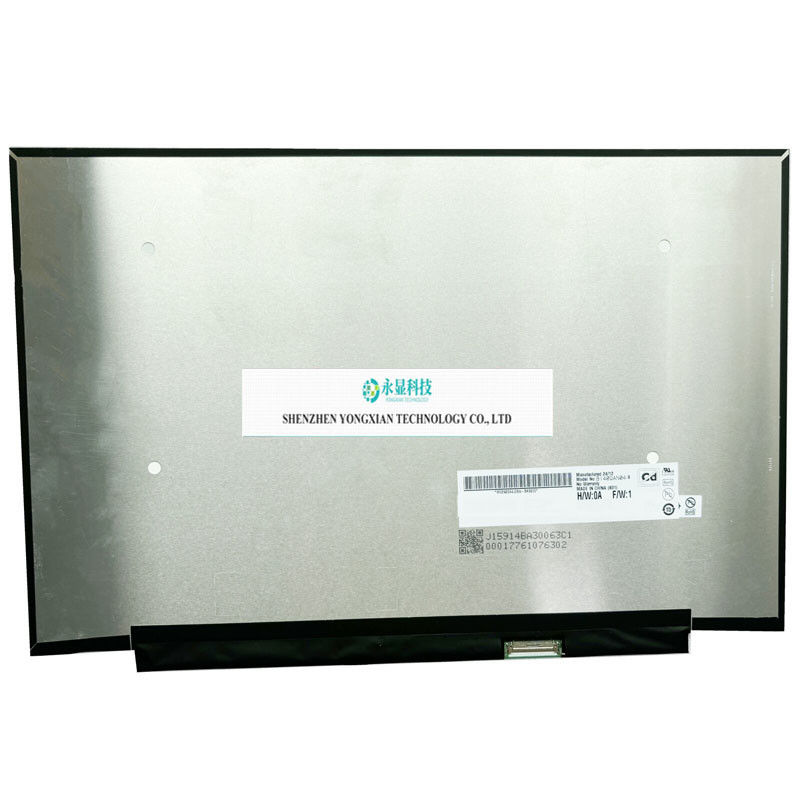

B140QAN04.S 14.0 inch 2880X1800 IPS Laptop LCD screen Display Panel Matrix NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140QAN04.S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140QAN04.S |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 2880(RGB)×1800, WQXGA+, 242PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 301.536(W)×188.46(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 16.7M | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) | ||
| Highlight: | ips laptop lcd,14.0 ips laptop,14.0 frameless ips monitor |
||
Product Description
B140QAN04. S is a 14.0-inch LTPS TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical features are summarized as: white LED backlight, including LED driver, and inverted terminals. Based on its feature screen library, this model is recommended for use in laptops and other products. The current production status is in mass production. And the parameters were finally updated on August 6, 2024. The display resolution of B140QAN04. S is 2880 (RGB) × 1800 (WQXGA+), with an aspect ratio of 16:10 (width: height). The pixels are arranged vertically in RGB stripes, and the pixel density calculated by the screen library is 242 PPI. Its display area size is 301.536 (width) × 188.46 (height) mm, and its appearance style is a thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140QAN04. S adopts eDP (4 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.).
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
