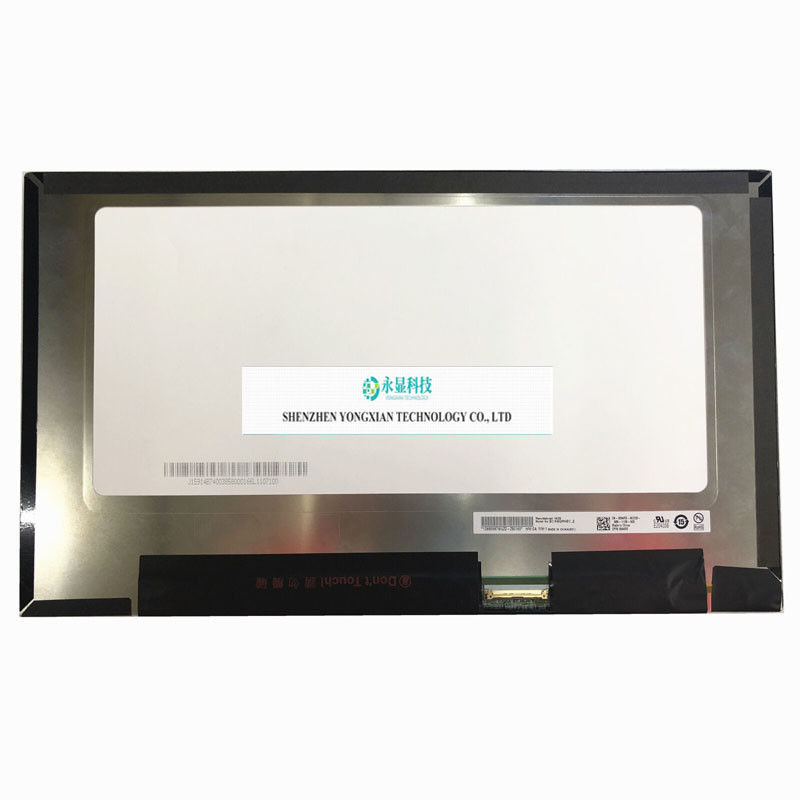

B140QAN01.2 QHD 40PIN 25601440 Laptop LCD LED Screen Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140QAN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140QAN01.2 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 2560(RGB)×1440, Quad-HD, 210PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.35(W)×174.01(H) Mm | Appearance Dimensions: | 320.8(W)×189.4(H)×4.85(D) Mm |
| Support Colors: | 16.7M , 72% NTSC | Surface Treatment Mirror: | - |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | EDP (4 Lanes) , | ||
| Highlight: | lcd laptop screen,led laptop screen,led laptop lcd screen |
||
Product Description
B140QAN01.2 is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The display resolution of B140QAN01.2 is 2560 (RGB) × 1440 (Quad HD), with an aspect ratio of 16:9 (width: height). The pixels are arranged vertically in RGB stripes, and the calculated pixel density is 210 PPI. Its display area size is 309.35 × 174.01 (width × height) mm, and its appearance size is 320.8 × 189.4 (width × height) × 4.85 (thickness) mm. The appearance style is a thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product uses a WLED side entry light source (bottom) with a lifespan of 15K hours and includes an LED driver. B140QAN01.2 adopts eDP (4 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on July 26, 2024. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, LED driver, inverted terminal and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
