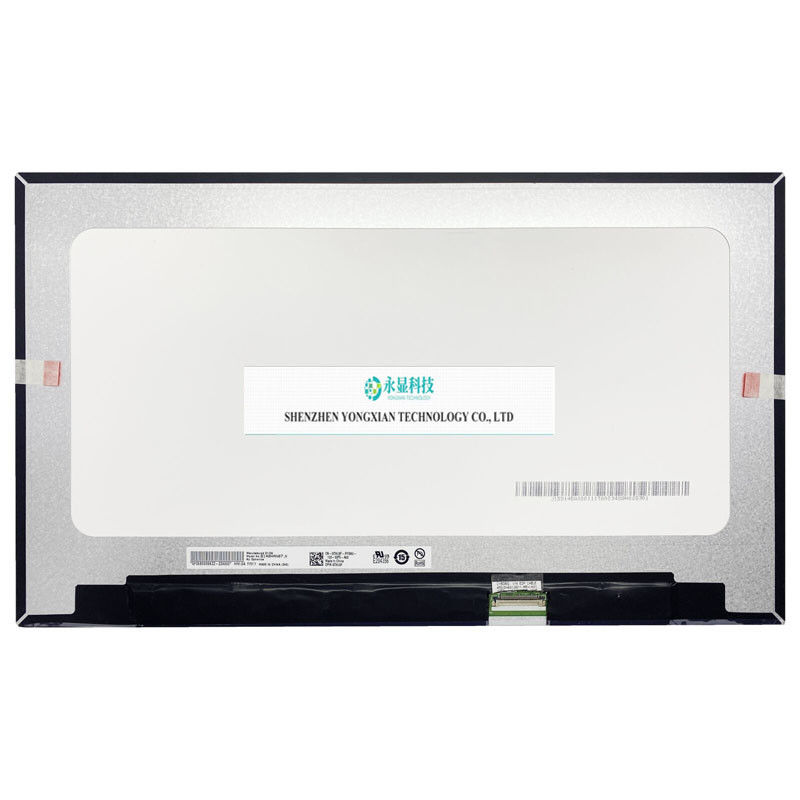

B140HAN07.H 14 WUXGA FHD IPS laptop LED LCD screen display panel New
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140HAN07.H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140HAN07.H |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.37(W)×174.02(H) Mm | Appearance Dimensions: | 315.87(W)×187.68(H)×5.25(D) Mm |
| Support Colors: | 16.2M , 100% SRGB | Surface Treatment Mirror: | Hard Coating (3H)，reflectivity 4.3% (Typ.) |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 700:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | fhd ips laptop,ips laptop led,fhd led lcd screen |
||
Product Description
B140HAN07. H is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. B140HAN07. H has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 309.37 × 174.02 (width × height) mm, and its appearance size is 315.87 × 187.68 (width × height) × 5.25 (thickness) mm. The surface treatment is Hard coating (3H), and the reflectivity is 4.3% (Typ.). The net weight of the product is 300g (Max.). The appearance style is thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HAN07. H adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. On August 30, 2022, parameters were first established for this model. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its white LED backlight, including LED driver, EDP1.2 and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
