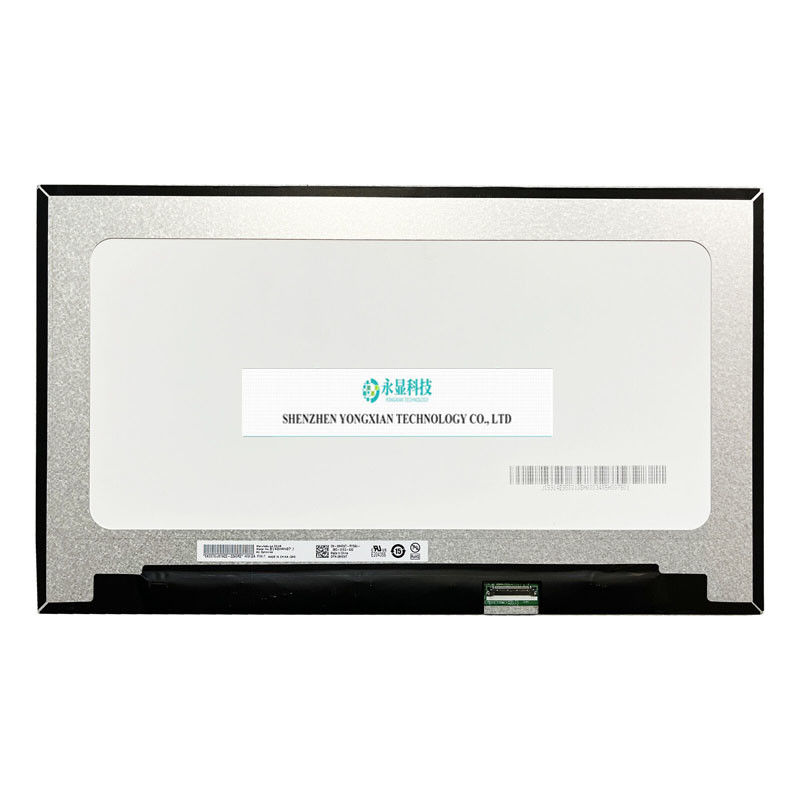

B140HAN07.1 14 FHD IPS laptop LED LCD screen display panel New
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140HAN07.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140HAN07.1 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.37(W)×174.02(H) Mm | Appearance Dimensions: | 315.87(W)×187.68(H)×5.25(D) Mm |
| Support Colors: | 16.2M , 45% NTSC | Surface Treatment Mirror: | Misty Surface, Hard Coating (3H)， Reflectivity 4.3% (Typ.) |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | fhd ips laptop,ips laptop led,fhd led lcd screen |
||
Product Description
B140HAN07.1 is a 14.0-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0-50 ° C, the storage temperature is -20~60 ° C, and the vibration resistance is 1.5G (14.7 m/s ²). Its typical feature screen library is summarized as: white LED backlight, including LED driver, inverted terminal, surface matte, eDP1.2. Based on its feature screen library, this model is recommended for use in laptops and other products. And the parameters were finally updated on August 30, 2022. According to the product specification document HW0A_Ver0.1 released by AU on July 31, 2020, B140HAN07.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 309.37 (width) × 174.02 (height) mm, and its appearance size is 315.87 (width) × 187.68 (height) × 5.25 (thickness) mm. The surface treatment is matte, Hard coating (3H), Reflectivity of 4.3% (Typ.), net weight of 300g (Max.), appearance style of thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HAN07.1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
