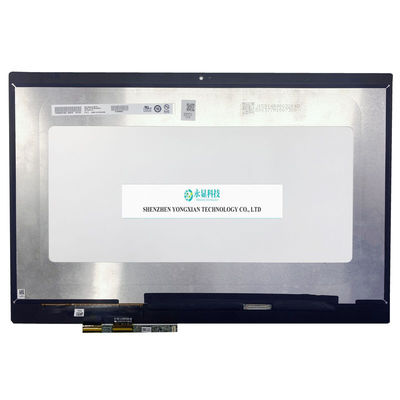

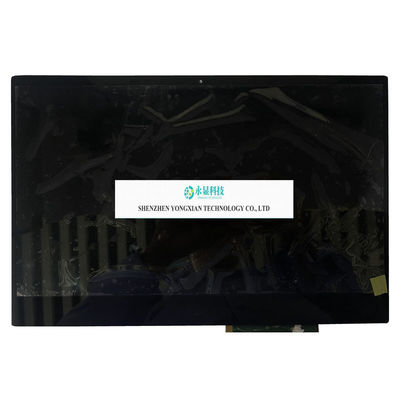

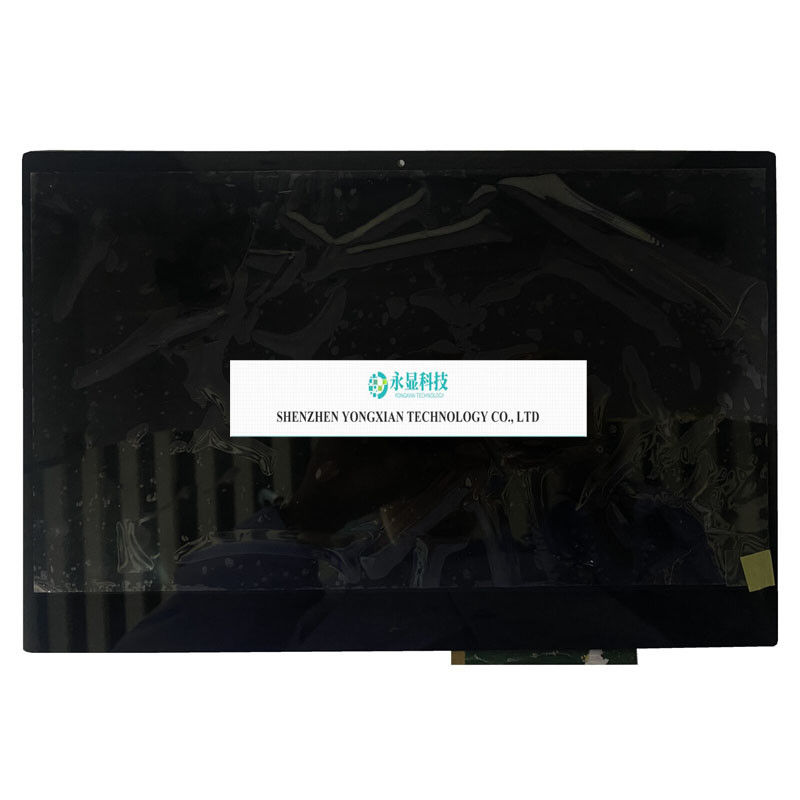

B140HAN06.2 For Acer Spin 7 SP714-61NA GH4PX LCD Touch Digitizer Screen Assembly
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140HAN06.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140HAN06.2 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.37(W)×174.02(H) Mm | Appearance Dimensions: | 313.67(W)×188.87(H)×2.1(D) Mm |
| Support Colors: | 16.7M , 100% SRGB | Surface Treatment Mirror: | Misty Surface,Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | lcd laptop screen,fhd laptop screen,fhd laptop lcd screen |
||
Product Description
B140HAN06.2 (Product Code: AUO623D AUODA91 is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver1.0 released by AU on July 2, 2020, B140HAN06.2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 309.37 × 174.02 (width × height) mm, and its appearance size is 313.67 × 188.87 (width × height) × 2.1 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 200g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HAN06.2 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on July 29, 2024. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its sRGB, white LED backlight, including LED driver, inverted terminals, and matte surface, EDP1.4, PSR, MBO, SSC, TED, EBL 1W and other features are recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
