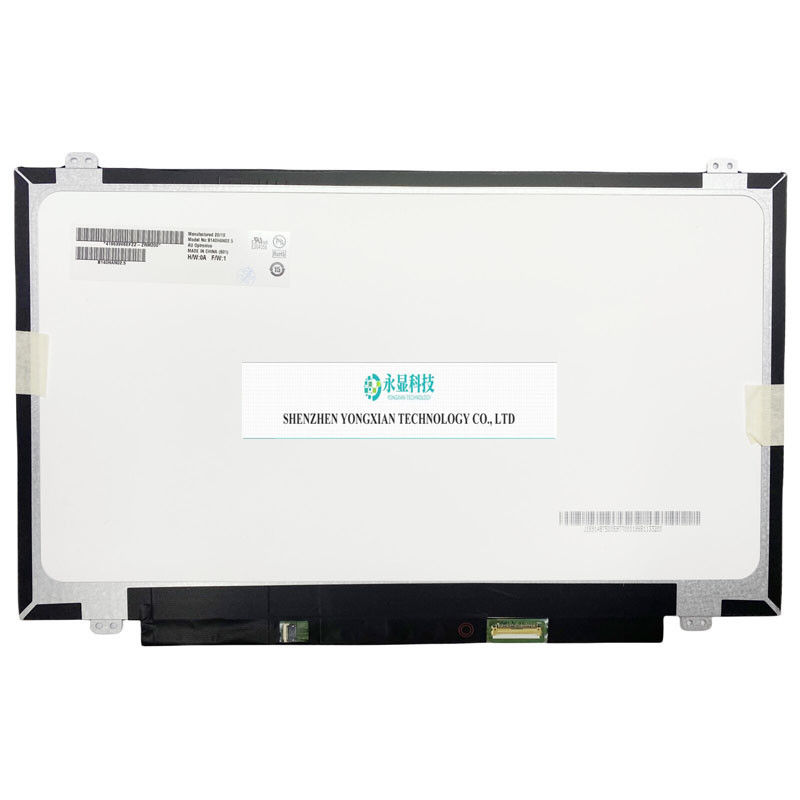

B140HAN02.5 EDP 40Pins EDP 1920X1080 Original Panel FHD Slim LCD Screen NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140HAN02.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140HAN02.5 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD，LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.14(W)×173.89(H) Mm | Appearance Dimensions: | 320.4(W)×205.1(H)×3.2(D) Mm |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Misty Surface |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | edp laptop screen,edp laptop lcd screen,40pins laptop screen |
||
Product Description
B140HAN02.5 (Product Code: AUO253D is a 14.0-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as: white LED backlight, including LED driver, inverted terminal, surface matte, eDP1.2, Max 3.2mm depth. According to the product specification document HW0A_Ver1.0 released by AU on December 12, 2016, B140HAN02.5 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 309.14 (width) × 173.89 (height) mm, and its appearance size is 320.4 (width) × 205.1 (height) × 3.2 (thickness) mm. The surface treatment is matte, and the net weight of the product is 270g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HAN02.5 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
