B140HAK03.5 LED LCD Touch Screen IPS FHD 19201080 EDP 40pin Laptop Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140HAK03.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140HAK03.5 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD，LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.14(W)×173.89(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K , 45% NTSC | Surface Treatment Mirror: | Misty Surface,Hard Coating (3H) |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | On-Cell Touch |
| Appearance Style: | Thin Screen (PCBA Bent, Thickness ≤ 3.0mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | led lcd touch screen,lcd touch screen ips,led lcd touch panel |
||
Product Description

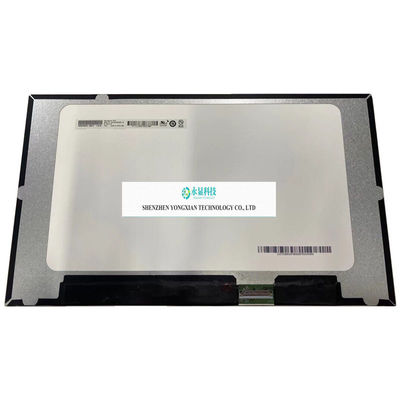

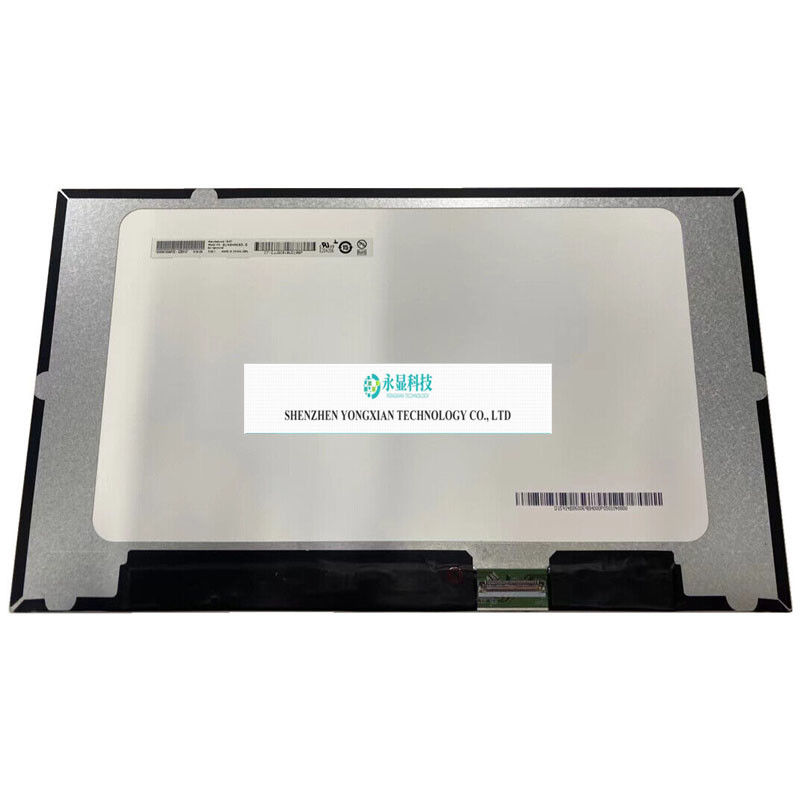

B140HAK03.5 is a 14.0-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight and includes LED driver backlight driver, On-Cell Touch. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as: with touch screen, white LED backlight, including LED driver, and inverted terminals. And the parameters were finally updated on September 1, 2022. B140HAK03.5 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 309.14 (width) × 173.89 (height) mm, and the net weight of the product is 305g (Max.). The appearance style is a thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HAK03.5 adopts eDP (2 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.).
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
