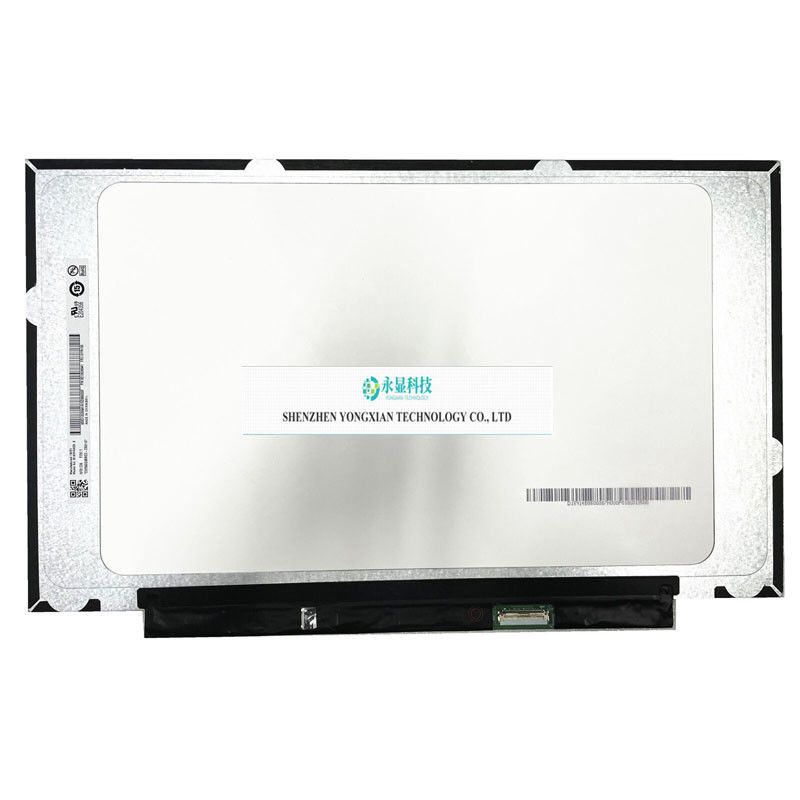

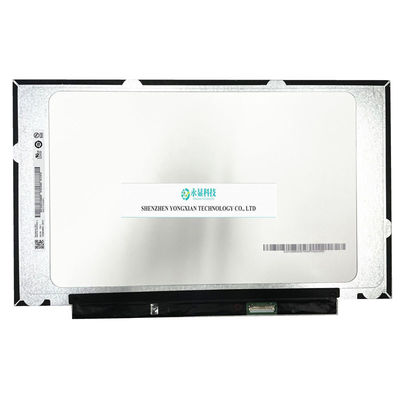

B140HAK03.2 R140NWF5 RA LP140WFB-SPK1 SPK4 LCD Display Panel Touch Screen LED
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B140HAK03.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B140HAK03.2 |
|---|---|---|---|
| Size: | 14.0 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 309.14(W)×173.89(H) Mm | Appearance Dimensions: | 315.87(W)×197.48(H)×3(D) Mm |
| Support Colors: | 16.2M , 45% NTSC | Surface Treatment Mirror: | Misty Surface,Hard Coating (3H) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | On-Cell Touch, USB |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | led lcd touch panel,led lcd display panel,fhd lcd touch panel |
||
Product Description
B140HAK03.2 (Product Code: AUO323D is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight and includes LED driver backlight driver, On-Cell Touch. According to the product specification sheet with version number H/W7A_Ver1.0 released by AU on May 28, 2021, B140HAK03.2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 309.14 × 173.89 (width × height) mm, and its appearance size is 315.87 × 197.48 (width × height) × 3 (thickness) mm. The surface treatment is matte, Hard coating (3H), The net weight of the product is 290g (Max.), and the appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HAK03.2 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz., And the parameters were finally updated on May 11, 2023. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its features such as touch screen, white LED backlight, LED driver, inverted terminals, matte surface, AMD FreeSync, eDP1.2, Free sync, LED Driver output mode: DC mode, etc., this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
