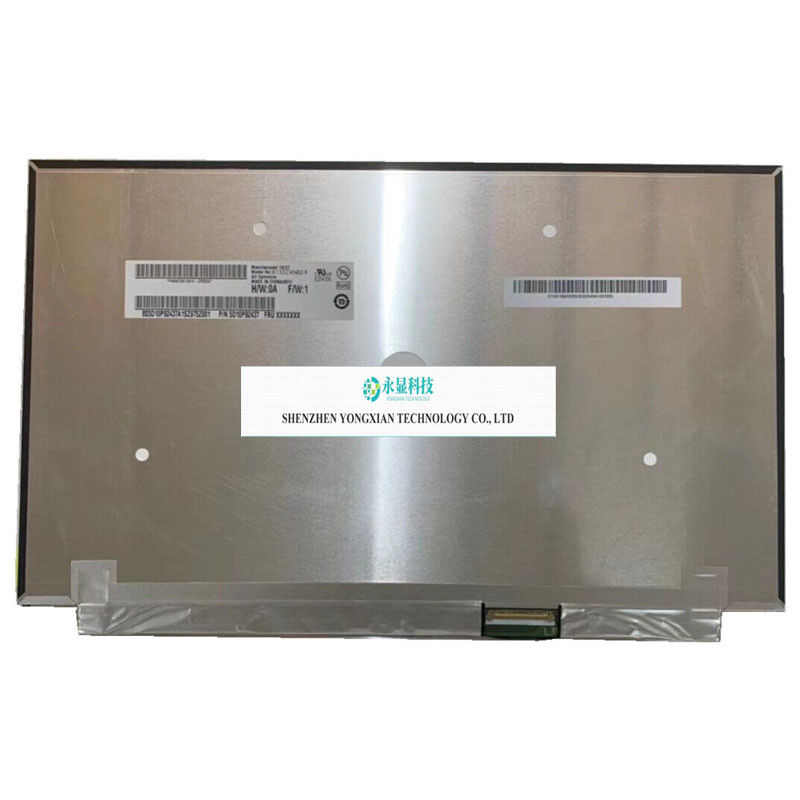

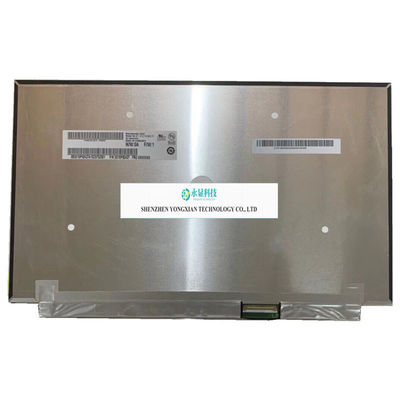

B133ZAN02.3 fit LP133UD1-SPA1 UHD LCD LED Screen 3840×2160 13.3 INCH
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B133ZAN02.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B133ZAN02.3 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 3840(RGB)×2160, UHD, 332PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.76(W)×165.24(H) Mm | Appearance Dimensions: | - |
| Visual Size: | - | Surface Treatment Mirror: | - |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1800:1 (Typ.) (Transmission) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Support Colors: | 16.7M , 72% NTSC | ||
| Highlight: | uhd laptop screen,uhd laptop lcd screen,lcd laptop screen |
||
Product Description
The B133ZAN02.3 launched by AUO is a 13.3-inch LCD module product using LTPS TFT-LCD technology, equipped with WLED backlight and touch free. Summarize its typical features as: white LED backlight, inverted terminals. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
