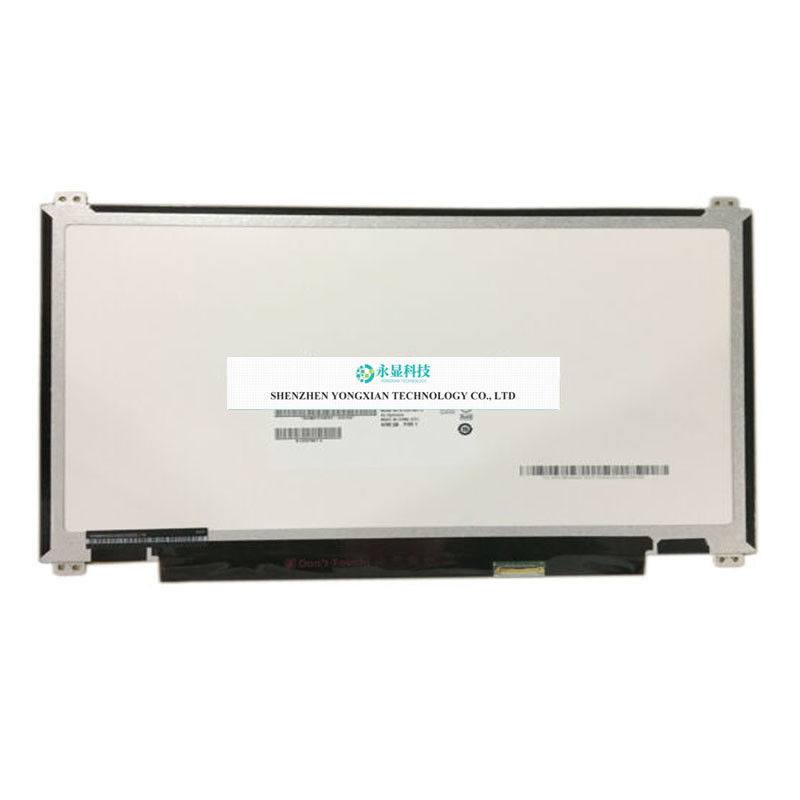

B133XTN01.6 fit LTN133AT32 B133XTN02.1 B133XTN01.3 N133BGE-E31 13.3 Slim 30 pin
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B133XTN01.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B133XTN01.6 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 1366(RGB)×768, WXGA, 118PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.42(W)×164.97(H) Mm | Appearance Dimensions: | 314.1(W)×188.7(H)×3(D) Mm |
| Visual Size: | - | Surface Treatment Mirror: | Misty Surface, Hard Coating (3H)， Reflectivity 4.3% (Typ.) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (Transmission) |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Working Mode: | TN， Constant White Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | 13.3 laptop screen,13.3 laptop lcd screen,30 pin laptop screen |
||
Product Description
AUO launches B133XTN01.6 HW1A (product code: AUO162C is a 13.3-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are: white LED backlight, including LED driver, inverted terminals, and matte surface, eDP1.2. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. According to the intelligence obtained by the screen library, this product was mass-produced in Q1 2015, and the current production status is discontinued. At present, B133XTN01.6 HW1A has 5 pieces of spot information and 2 supplier information on the screen library, and the trading atmosphere is active. The screen library first established parameters for this model on August 23, 2016, and finally updated the parameters on August 30, 2022. According to the product specification document Ver0.1 released by AUO on March 24, 2015, the B133XTN01.6 HW1A has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 293.42 × 164.97 (width × height) mm, and its appearance size is 314.1 (width) × 188.7 (height) × 3 (thickness) mm. The surface treatment is matte, Hard coating (3H), Reflectivity of 4.3% (Typ.), net weight of 250g (Max.), appearance style of thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 12K hours and includes an LED driver. B133XTN01.6 HW1A adopts eDP (1 Lane) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you want to develop a new product using B133XTN01.6 HW1A LCD module, screen library ® We suggest that you inquire with AU or its agents about the latest production status and technical information regarding B133XTN01.6 HW1A. Screen Library ® The panel parameters displayed on the screen were entered by the electronic engineer of the screen library according to the specification sheet, and efforts have been made to minimize errors, but we cannot guarantee the complete correctness of the parameters. Please refer to the specification sheet!
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
