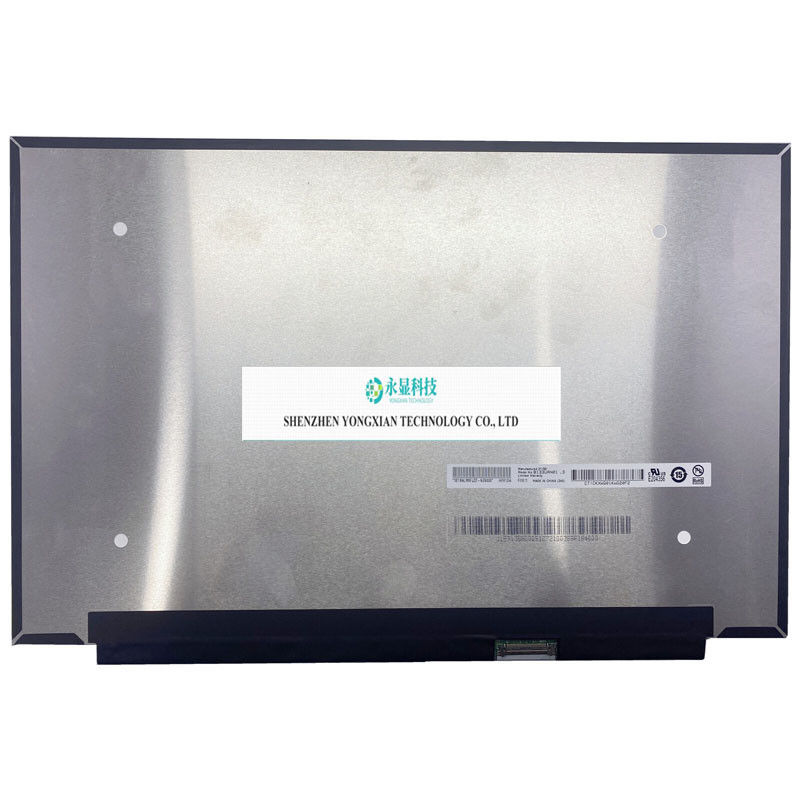

B133UAN01.3 13.3 inch 1920X1200 30PIN EDP LCD LED SCREEN PANEL Matrix IPS NEW
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B133UAN01.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B133UAN01.3 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCDLCD Module |
| Resolution: | 1920(RGB)×1200, WUXGA, 170PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 286.042(W)×178.776(H) Mm | Appearance Dimensions: | - |
| Visual Size: | - | Surface Treatment Mirror: | - |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10 | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Highlight: | 30pin edp lcd,edp lcd led,13.3 tft lcd panel |
||
Product Description
The B133UAN01.3 launched by AUO is a 13.3-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight and touch free. The screen library summarizes its typical features as: white LED backlight. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. The current production status is in mass production. At present, B133UAN01.3 has 3 pieces of spot information and 3 supplier information on the screen library, and the trading atmosphere is active. The screen library first established parameters for this model on August 30, 2022, and finally updated the parameters on December 6, 2022. B133UAN01.3 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 286.042 × 178.776 (width × height) mm, and the net weight of the product is 210g (Max.). The appearance style is a thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source. B133UAN01.3 adopts eDP signal interface and terminal connection. Its typical vertical refresh rate Fv is 60Hz. If you want to develop a new product using B133UAN01.3 LCD module, screen library ® We suggest that you inquire with AU or its agents about the latest production status and technical information regarding B133UAN01.3. The parameters of this model are not excerpted from the specification book and are only for reference. Please use them with caution! The production status marked on the screen library is for reference only and should not be used as a decision-making basis for users.
