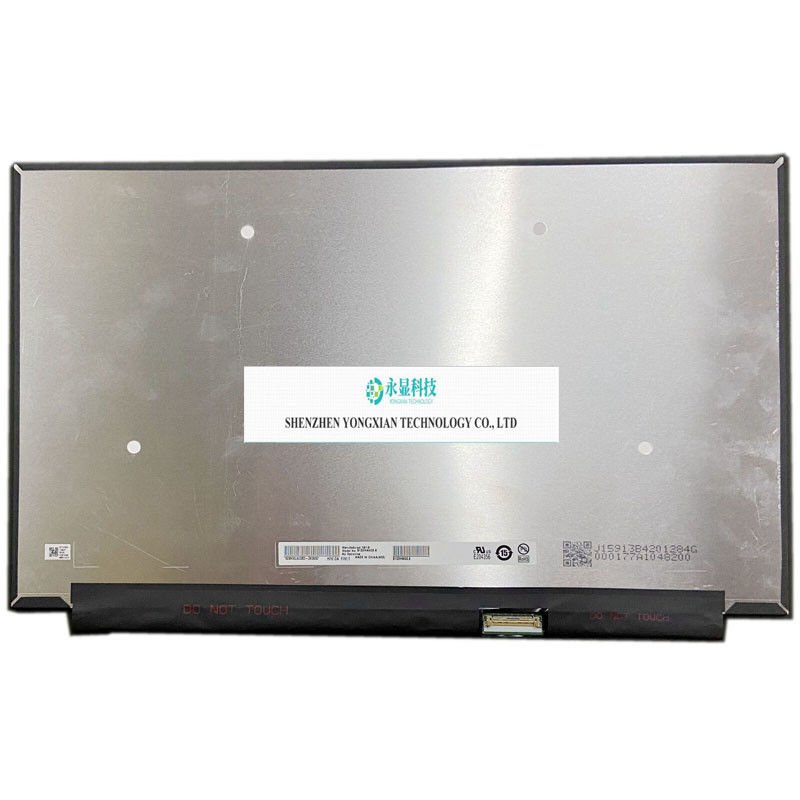

B133HAN05.8 LCD LED Screen Replacement Display Matrix New EDP IPS Non-Touch
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B133HAN05.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B133HAN05.8 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | LTPS TFT-LCD, LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 166PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.76(W)×165.24(H) Mm | Appearance Dimensions: | - |
| Visual Size: | - | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 60 °C |
| Highlight: | lcd laptop screen,led laptop screen,led laptop lcd screen |
||
Product Description
B133HAN05.8 (Product Code: AUO582D is a 13.3-inch LCD module product launched by AU Optronics Corporation (AUO) using LTPS TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. B133HAN05.8 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 293.76 × 165.24 (width × height) mm, and its appearance style is a thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B133HAN05.8 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you want to develop a new product using B133HAN05.8 LCD module, screen library ® We suggest that you inquire with AU or its agents about the latest production status and technical information regarding B133HAN05.8. The parameters of this model are not excerpted from the specification book and are only for reference. Please use them with caution! The production status marked on the screen library is for reference only and should not be used as a decision-making basis for users. The current production status is discontinued. At present, B133HAN05.8 has 0 spot information and 0 supplier information on the screen library, and the trading atmosphere is light. The screen library first established parameters for this model on March 31, 2020, and finally updated the parameters on August 30, 2022. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). Based on its white LED backlight, LED driver, inverted terminal and other features, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
