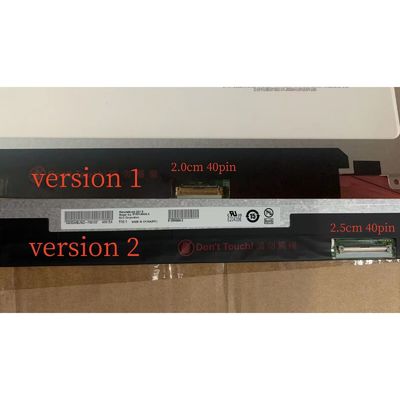

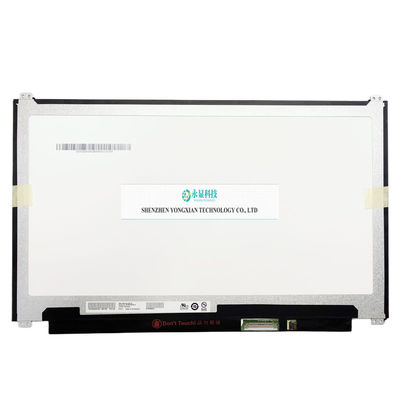

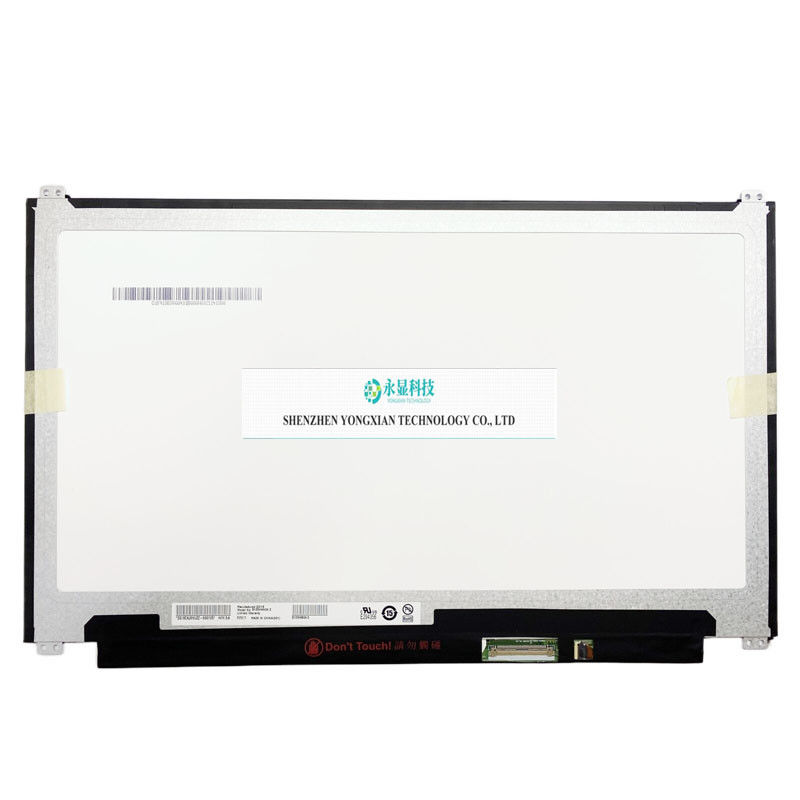

B133HAN04.0 13.3 WUXGA 1080P LCD Screen LED FHD IPS Display New 40 pin
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B133HAN04.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | AUO | Model: | B133HAN04.0 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD, LCD Module |
| Resolution: | 1920(RGB)×1080, FHD, 166PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.472(W)×165.078(H) Mm | Appearance Dimensions: | 305.35(W)×193.6(H)×3.2(D) Mm |
| Visual Size: | - | Surface Treatment Mirror: | Hard Coating |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Working Mode: | AHVA， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | Thin Screen (PCBA Flat, Thickness ≤ 3.2mm) | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 60 °C |
| Highlight: | 13.3 laptop screen,13.3 laptop lcd screen,1080p laptop screen |
||
Product Description
AUO launches B133HAN04.0 (product code: AUO102D is a 13.3-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The typical features of the screen library are: white LED backlight, including LED driver, inverted terminal, eDP1.2. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. According to the intelligence obtained by the screen library, this product was mass-produced in Q2 2017, and the current production status is discontinued. At present, B133HAN04.0 has 2 pieces of spot information and 5 supplier information on the screen library, and the trading atmosphere is active. The screen library first established parameters for this model on October 18, 2016, and finally updated the parameters on August 30, 2022. According to the product specification document HW3A_Ver0.2 released by AU on June 21, 2017, B133HAN04.0 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and RGB vertical stripe arrangement of pixels. Its display area size is 293.472 × 165.078 (width × height) mm, and its appearance size is 305.35 (width) × 193.6 (height) × 3.2 (thickness) mm. The surface treatment is Hard coating, and the net weight of the product is 260g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B133HAN04.0 adopts eDP (2 Lanes) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you want to develop a new product using B133HAN04.0 LCD module, screen library ® We suggest that you inquire with AU or its agents about the latest production status and technical information regarding B133HAN04.0. Screen Library ® The panel parameters displayed on the screen were entered by the electronic engineer of the screen library according to the specification sheet, and efforts have been made to minimize errors, but we cannot guarantee the complete correctness of the parameters. Please refer to the specification sheet!
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
