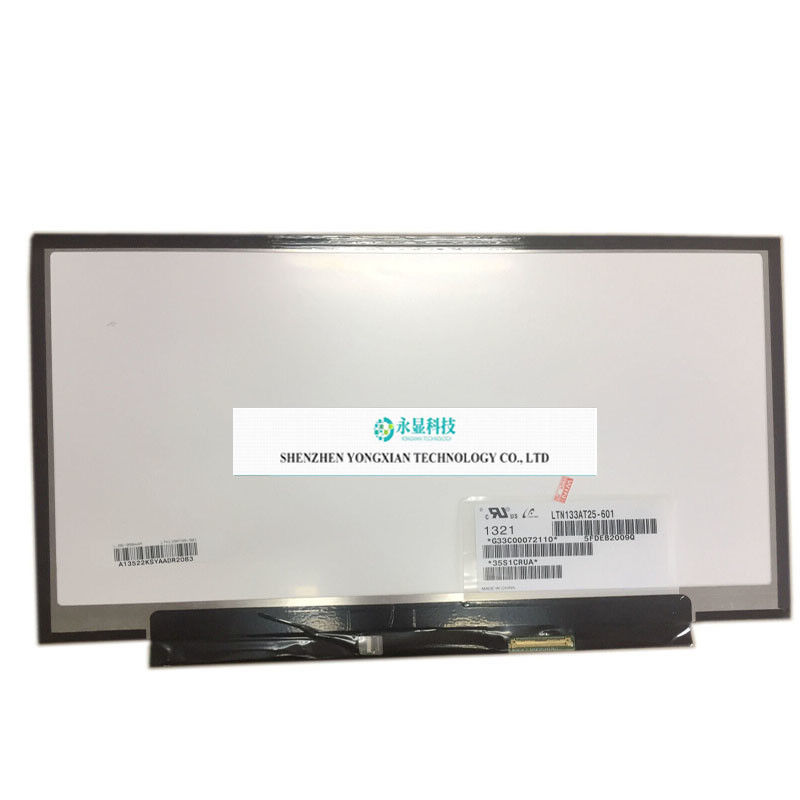

LTN133AT25-601 LTN133AT25 501 601 T01 13.3 inch Slim Display LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTN133AT25-601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Samsung | Model: | LTN133AT25-601 |
|---|---|---|---|
| Size: | 13.3 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1366(RGB)×768, WXGA, 118PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 293.42(W)×164.97(H) Mm | Appearance Dimensions: | - |
| Support Colors: | 262K | Surface Treatment Mirror: | - |
| Brightness: | - | Contrast Ratio: | - |
| Viewing Angle: | - | Working Mode: | TN， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | - | Maximum Rating: | 0 ~ 50 °C ; Storage:- 20 ~ 60 °C |
| Interface Type: | - | ||
| Highlight: | 13.3 laptop screen,13.3 laptop lcd screen,lcd laptop screen |
||
Product Description
The LTN133AT25-601 launched by Samsung is a 13.3-inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight and touch free. Its typical features are summarized as: white LED backlight. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on February 6, 2021. LTN133AT25-601 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 293.42 × 164.97 (width × height) mm. In terms of backlight, this product adopts a WLED side entry light source. Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
