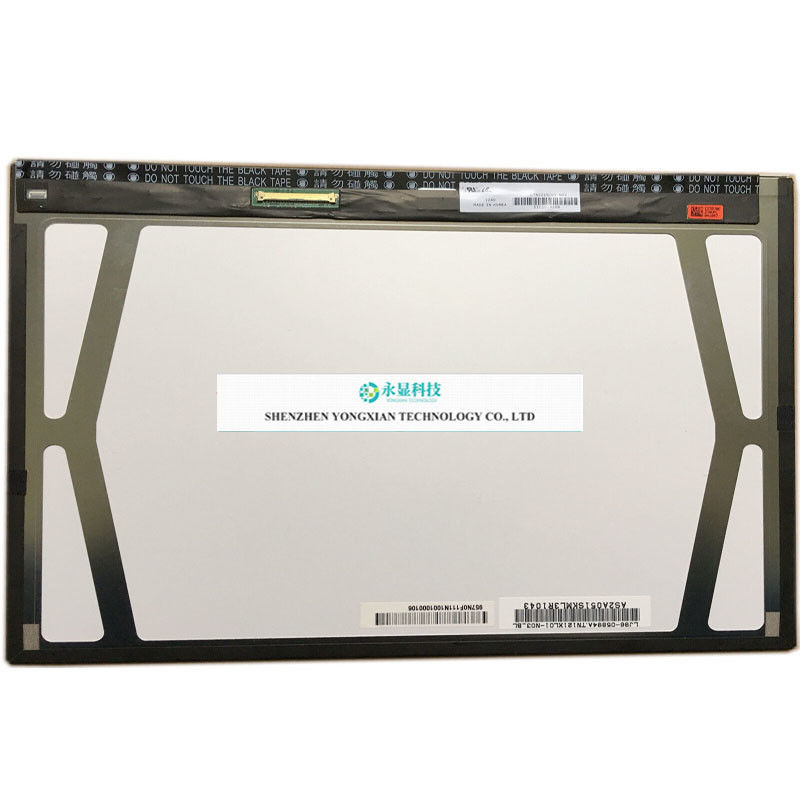

LTN121XL01-N03 LTN121XL01 N03 12.1 inch 1024768 NEW LCD Display Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung) |
| Model Number: | LTN121XL01-N03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Samsung) | Model: | LTN121XL01-N03 |
|---|---|---|---|
| Size: | 12.1 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1024(RGB)×768, XGA, 105PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 245.76(W)×184.32(H) Mm | Appearance Dimensions: | 257.3(W)×199.1(H)×4.75(D) Mm |
| Support Colors: | 262K , 47% NTSC | Surface Treatment Mirror: | Matte (Haze 25%)，Hard Coating (3H) |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 300:1 (Typ.) (Transmission) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Working Mode: | PLS， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | LVDS (1 Ch, 6-bit) , 40 Pins，Terminal, | ||
| Highlight: | tft lcd touch panel,262k lcd touch panel,tft lcd display panel |
||
Product Description
The LTN121XL01-N03 launched by Samsung is a 12.1-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. Its typical features are summarized as: white LED backlight, including LED driver, and surface matte. Its working temperature is 0~45 ° C, and its storage temperature is -20~60 ° C. This model is suitable for use in laptops. And the parameters were finally updated on September 14, 2022. According to the version number Rev. released by Samsung on August 25, 2011 The product specification book for A01, LTN121XL01-N03, has a display resolution of 1024 (RGB) × 768 (XGA), an aspect ratio of 4:3 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 245.76 × 184.32 (width × height) mm, and its appearance size is 257.3 (width) × 199.1 (height) × 4.75 (thickness) mm. The surface treatment is matte (Haze 25%), hard coating (3H), and the net weight of the product is 199/209g (Typ./Max.). In terms of backlight, this product uses a 9S4P WLED side entry light source with a lifespan of 10K hours, including an LED driver. LTN121XL01-N03 adopts LVDS (1 ch, 6-bit) signal interface, with a total of 40 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
