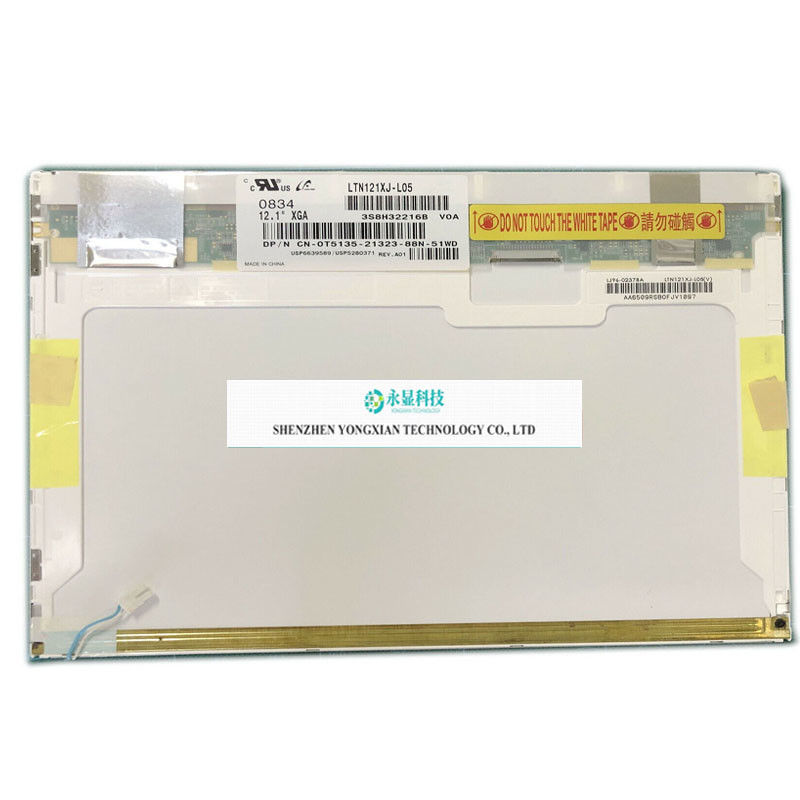

LTN121XJ-L05 fit N121X5-L06 N121X5-L03 LTN121XJ-L07 LTN121XJ-L02 LTN121XJ-L01
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTN121XJ-L05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 5 |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Samsung | Model: | LTN121XJ-L05 |
|---|---|---|---|
| Size: | 12.1 | Panel Type: | A-Si TFT-LCD,module |
| Resolution: | 1024(RGB)×768, XGA, 105PPI | Pixel Layout: | RGB Vertical Stripe |
| Display Area: | 245.76(W)×184.32(H) Mm | Appearance Dimensions: | 261(W)×198(H)×5(D) Mm |
| Support Colors: | 262K , 46% NTSC | Surface Treatment Mirror: | Matte (Haze 40%)，Hard Coating (2H) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (Transmission) |
| Viewing Angle: | 50/50/40/45 (Typ.)(CR≥10) | Working Mode: | TN， Constant Black Display, Transmissive |
| Refresh Rate: | 60Hz | Touch Function: | No Touch |
| Appearance Style: | - | Panel Application: | Notebook Computer |
| Voltage: | 3.3V (Typ.) | Maximum Rating: | Storage Temperature:- 20~60 ° C Operating Temperature: 0 ~ 50 °C |
| Interface Type: | 20 Pins LVDS (1 Ch, 6-bit) , Terminal, | ||
| Highlight: | lcd laptop screen,tft laptop screen,tft laptop lcd screen |
||
Product Description
LTN121XJ-L05 is a 12.1-inch LCD module product launched by Samsung Display Co., Ltd. (Samsung) using a-Si TFT-LCD technology. It is equipped with CCFL backlight, no backlight driver, and no touch. According to the product specification document with version number 20060721 released by Samsung on July 21, 2006, the LTN121XJ-L05 has a display resolution of 1024 (RGB) × 768 (XGA), an aspect ratio of 4:3 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 245.76 × 184.32 (width × height) mm, the visible size is 249.9 × 188.4 (width × height) mm, the appearance size is 261 × 198 (width × height) × 5 (thickness) mm, the surface treatment is matte (Haze 40%), Hard coating (2H), and the net weight of the product is 275g (Typ.). In terms of backlighting, this product uses 1 piece of CCFL emitting side entry light source (bottom), with a lifespan of 10K hours and no backlight driver included. LTN121XJ-L05 adopts LVDS (1 ch, 6-bit) signal interface, with a total of 20 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on February 18, 2019. Based on its features such as surface fog, this model is recommended for use in laptops.
Packing & Shipping
Trading Process
FAQ
1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.
2.What payment method can I use?
T/T is the best,we aslo accpet Paypal
3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,
and will use third parties delivery services or delivered as clients request.
4.How long is the warranty period?
12 Months
5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
